Axonometric Cutaway

A closer look

Keep parallel edges consistent, retained floors attached and cut surfaces distinct from surfaces seen beyond. Remove enough enclosure to reveal a spatial argument without turning the building into an exploded assembly.

What is an axonometric cutaway?

An axonometric cutaway combines a projection method with a decision about visibility. The axonometric view presents an object obliquely without ordinary perspective convergence; the cutaway removes part of its enclosure so an interior can be understood. Autodesk’s definition emphasizes that parallel lines in the object remain parallel in the view rather than meeting at vanishing points. [1]

The result can explain a house, machine, stage set or imagined spacecraft at a glance. Exterior and interior occupy the same picture. It is a drawing technique, not a single historical art movement, and it can serve either technical explanation or expressive illustration.

Its particular pleasure is the feeling of access. We see rooms usually hidden behind a facade while retaining a sense of the whole. The drawing seems generous. But generosity needs editing: remove everything and there is no building left to understand.

Cutaway, section, exploded view and isometric

A cutaway removes selected material. An exploded view separates components to expose their assembly. In a cutaway, the floors and walls that remain should ordinarily stay in their spatial positions. Floating every level above the next may make an excellent exploded illustration, but it answers a different question.

A section conventionally describes an imaginary cut through an object, often in a flat projection. A sectional axonometric can combine that cut with a three-dimensional view. The terms overlap in practice, so explain what has been removed rather than trusting a label to do all the work.

Isometric is a specific form of axonometric representation, not a synonym for every angled architectural drawing. For a visual brief, asking for consistent parallel projection is often more useful than piling several projection terms together. “Photorealistic wide-angle perspective, perfectly isometric” gives the model competing instructions, then blames it for choosing one.

Architectural references that reward comparison

MoMA records Richard Meier’s The Atheneum, New Harmony, Indiana, Axonometric, circa 1976, as graphite on tracing paper. The modest medium is a useful reminder that this way of explaining space does not depend on glossy digital rendering. This is a reference for axonometric architectural drawing; the catalogue title alone does not establish that it is a cutaway. [2]

John Hejduk’s Diamond House B, Projection, 1963–1967, offers a more conceptual comparison. SFMOMA explains how the rotated plan and layered projections complicate spatial reading even while quantitative information remains. A projection can be formally consistent and still be difficult to decipher. Legibility is a design achievement, not an automatic consequence of using geometry. [3]

These references are not templates to imitate blindly. Ask what each drawing privileges: organization, overlap, enclosure, circulation or ambiguity. Our illustrations choose a more accessible explanatory role, with visible rooms and a restrained palette. That is an editorial choice, not the only legitimate use of the technique.

Build a hierarchy of edges

Give the cut itself a visual identity. A darker edge or filled cut surface can distinguish severed material from a wall seen farther inside. Then reduce the weight of furniture and small fittings. If a chair leg shouts as loudly as the building’s boundary, the room loses its structure.

Choose the removal strategically. A missing front corner can reveal two adjoining rooms and their connection. Removing the entire roof may explain a courtyard but conceal the experience of enclosure. Decide which relationship is essential before choosing an attractive camera angle.

Stairs deserve unusually suspicious attention. Follow the route from one floor to the next and check the opening above it. A staircase can be beautifully shaded while terminating at a slab. Generators are excellent at making such arrangements look intentional; circulation remains less impressed.

Reading our library and courtyard studies

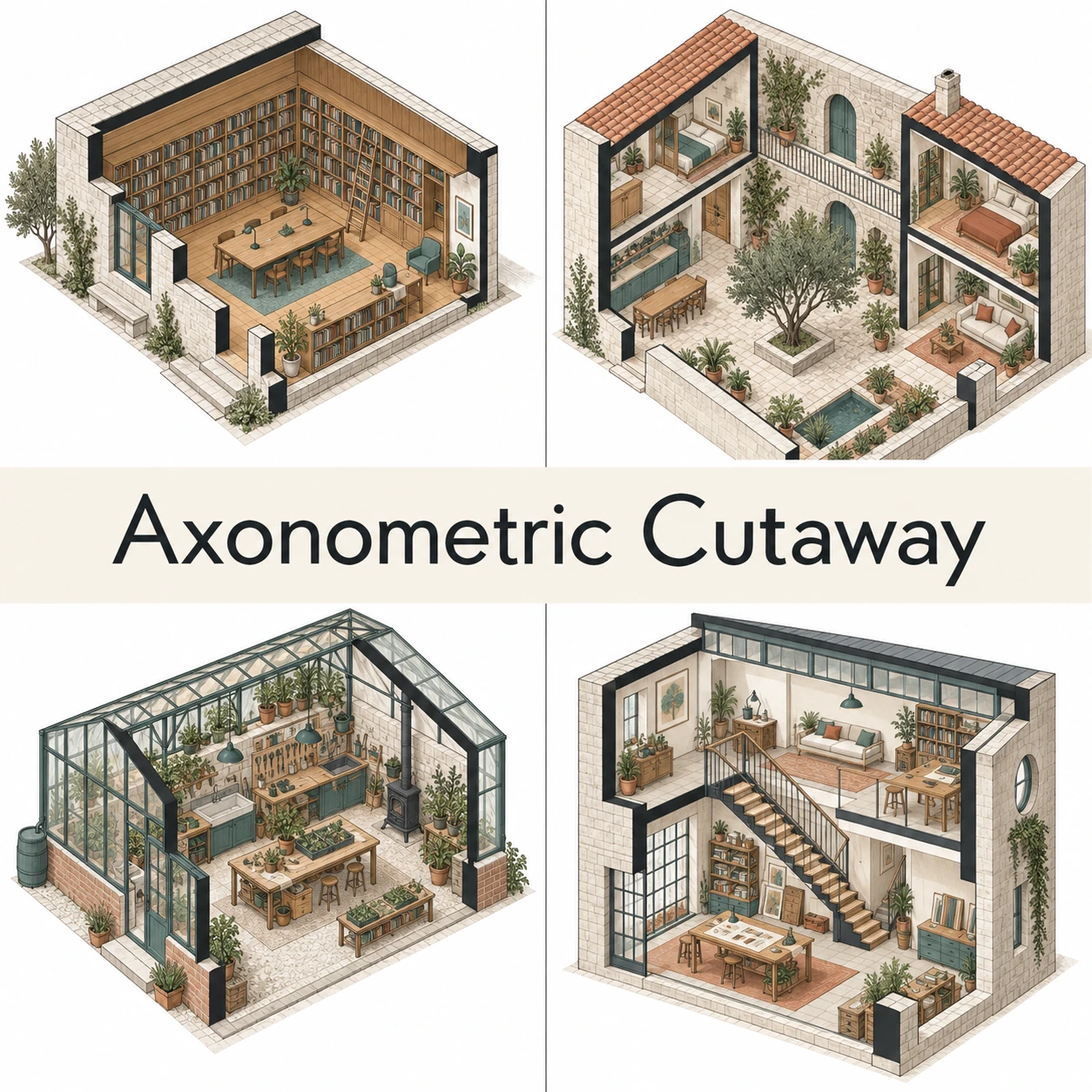

The panoramic library study balances pale surfaces, timber tones and teal accents around an open central area. Shelves and desks provide scale cues while the retained volumes keep the building readable. The collage compares several small architectural programs without lifting the floors into an exploded stack.

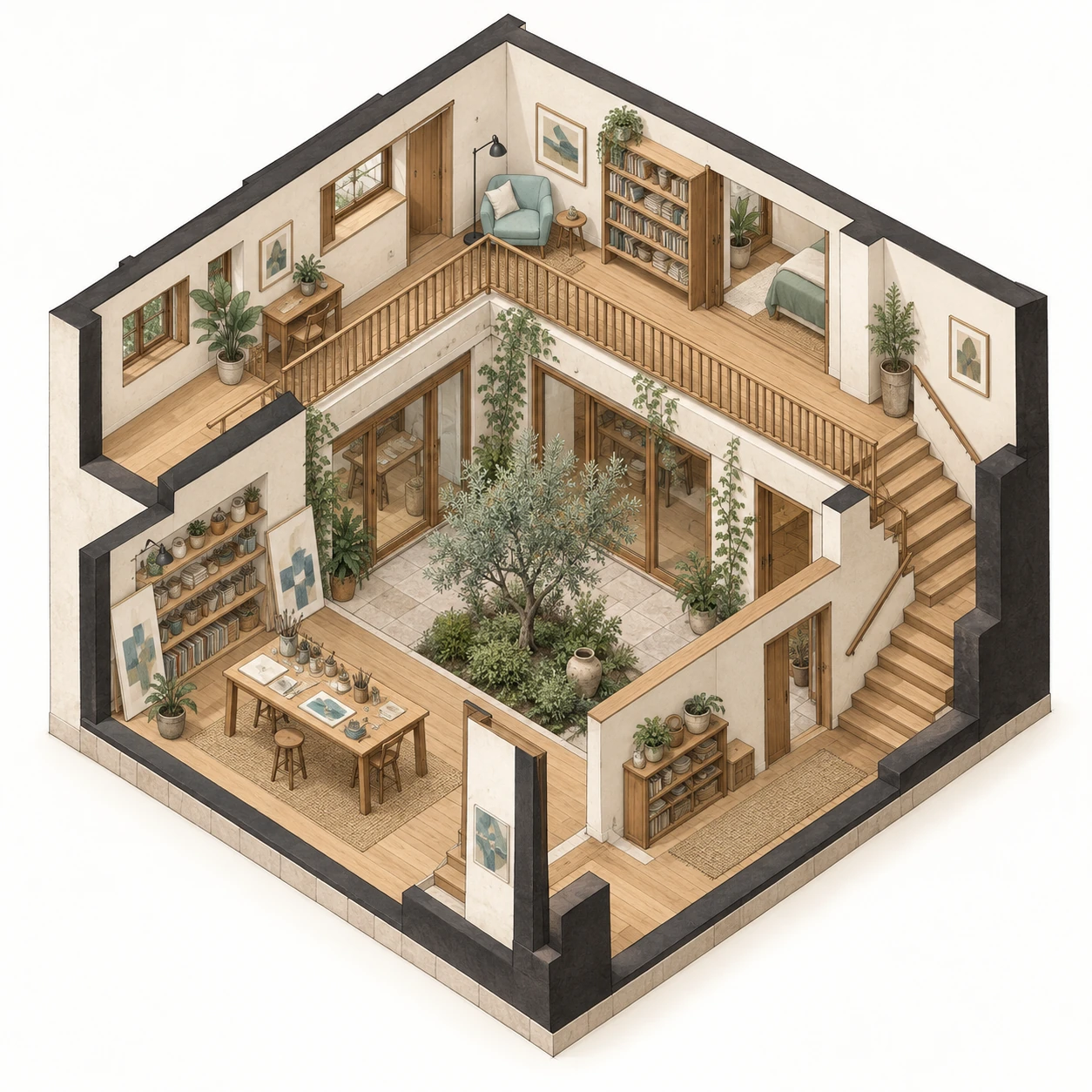

The standalone courtyard-house study concentrates on rooms arranged around planted open space. Darker cut edges help organize the picture; furnishings make the spaces approachable. These are AI-generated architectural illustrations, not measured models or verified designs. Their usefulness is visual: they let us discuss what the cut reveals, what it hides and where the drawing still needs checking.

Usability in AI art generation

Axonometric cutaways work well for editorial explanations, fictional architecture, game environments and concept presentations. Name the object, the removed portion and the interior relationship you want to show. “Two-level library, front corner and part of roof removed, retained floors connected, continuous stair visible” is a more actionable brief than “complex architectural masterpiece.”

Expect perspective drift, incompatible floor heights, walls with changing thickness and rooms whose contents do not fit. Repeated windows or stairs can look plausible locally while contradicting the whole. Inspect the main axes, then the circulation, then the small details. Decorative polish should be the last approval criterion.

When exact spatial consistency is required, construct or verify the geometry in CAD or a 3D tool and use a controlled orthographic view. A generated bitmap alone does not provide a dependable geometric model. You can explore material atmosphere with AI while retaining a separate, authoritative spatial reference.

An exercise in useful subtraction

Imagine a tiny two-room studio. Show it first as a closed volume, then with the near corner removed, then with most of the roof removed. Keep the view and palette as stable as possible. Compare which version explains the entrance, the work area and the connection between rooms.

Now remove the decorative objects from your assessment. Can you still explain the building? If yes, the cut is doing its job. If no, the potted plants have been promoted beyond their qualifications. A good cutaway tells you why the inside belongs to the outside.
